High speed Hi-rib lath machine

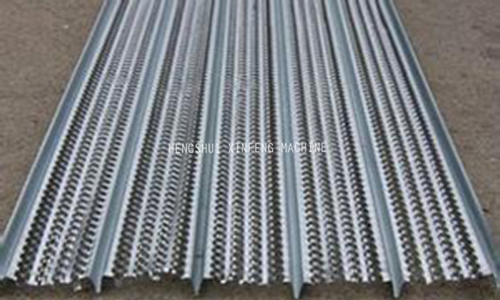

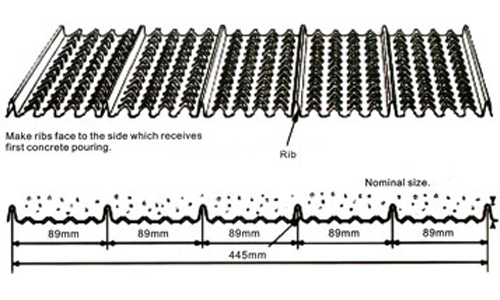

The Hi-rib lath machine is used to produce the hi-rib lath which is applied to plaster and reinforcing the wall.






Decoiler:

Inner diameter

350mm

Outer diameter

700mm

Material width

475-500MM

Loading weight

2000kg

Servo motor

1.5KW

Main machine

Pressure

450 KN

Material thickness

Max.1.2mm GI

Mesh width

≤700 mm

Punching speed

450-500 strokes/min, or 10-12m/min

Slide stroke

20 mm

Max. Die height

200 mm

Die height adjustment

MAX. 50 mm

Working table size

500×700 mm

Overall size (L×W×H)

1300×1300×1900 mm

Motor Power

15-22 KW

Machine weight

1700kg

Roll forming and cutting

Driven way

Chain and gear

Forming Motor power

22kw

Profiling mold

45 Steel

Roller station

18

Hydraulic cut

7MPa 40L Tank

Size

7500mmWx1100mmLx1700mmH

Weight

3500kg
