XF-1.5-1250 (25T) expanded metal machinery

 (25T) expanded metal machinery; Expanded metal machine;expanded metal lath machine;expande metal mesh machine
1:Description of expanded metal machine:

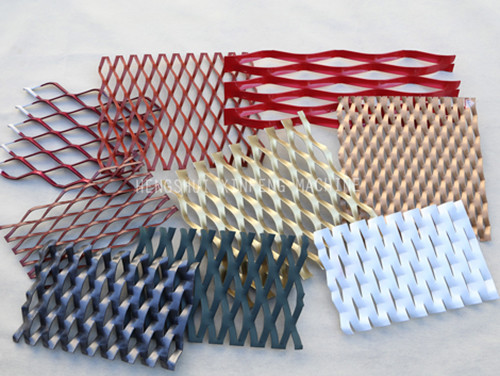

The (expanded mesh machinery;expande metal mesh machine ;expanded metal lath machine) can process cold-rolled steel, aluminum material to expanded mesh with hexagonal, diamond, half round, etc. which are used for building, hardware, machine tool, electric industrial, protective and decoration of household electrical appliances.
Material strength is under 450N/mm2, material with elongation over 25%.
Expanded process is finished by crankshaft connecting rod system, moved by cam,feed by stepping motor, the feeding distance can be easily adjusted. This machine has characteristics of structure, easy operation and steady performance.

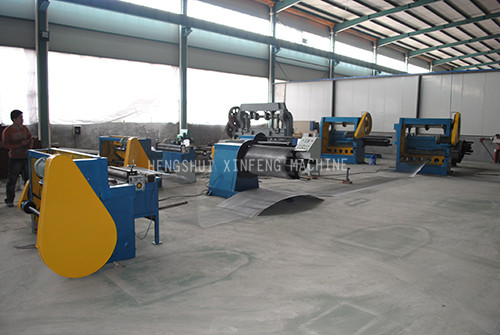

2:Expanded metal mesh production process:

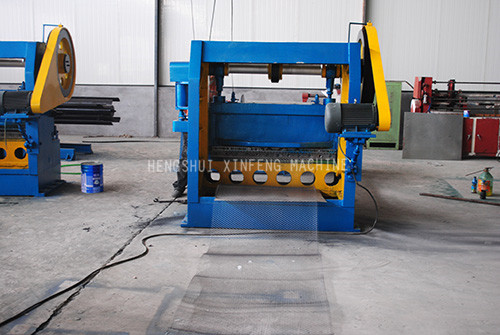

1.Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.

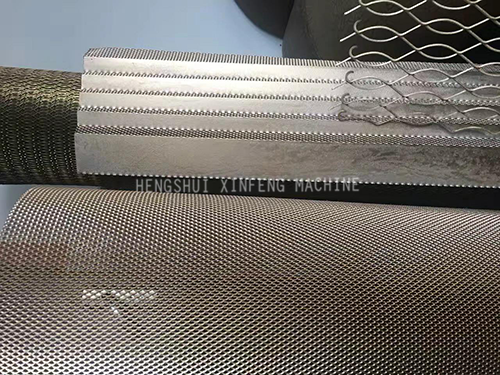

2.Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3.The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process

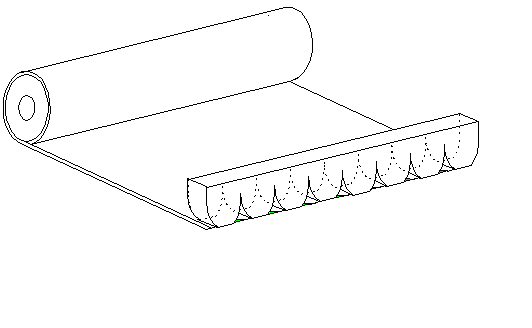

4.Using the unique shearing and streching process means very little waste is created. the metal is sheared and then streched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing

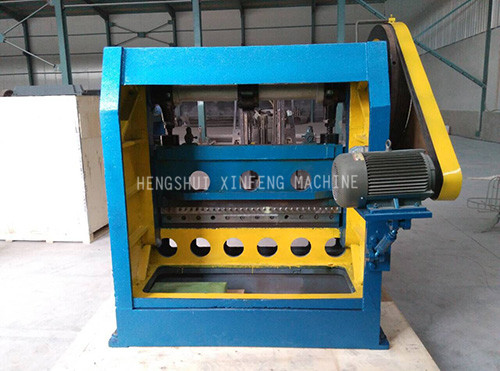

3:Composition  of machine:

The expanded metal mesh machine is composed of main machine frame, driving system, crankshaft, upper blade frame(movable frame), down blade frame, feeding device, material moving device, lubrication system and electric control part.

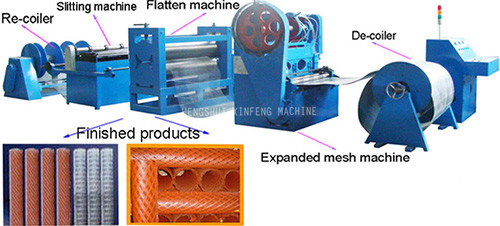

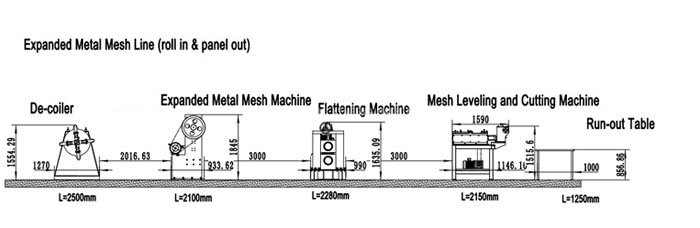

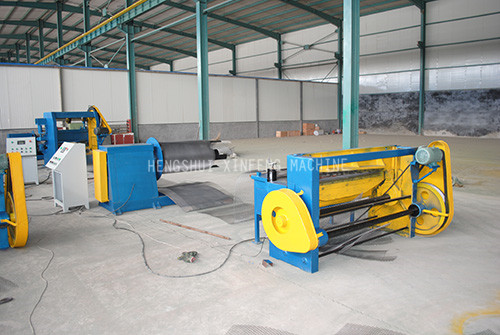

expanded mesh machinery; expanded metal lath machine


Re-coiler:
Loading weight: 100kg
Inner diameter: φ75~78mm
Recoiling width: ≤1250mm
Recoiling speed: 3-5m/min
Overall size of machine(L*W*H): 2040*680*1020mm
Machine weight: 500kg

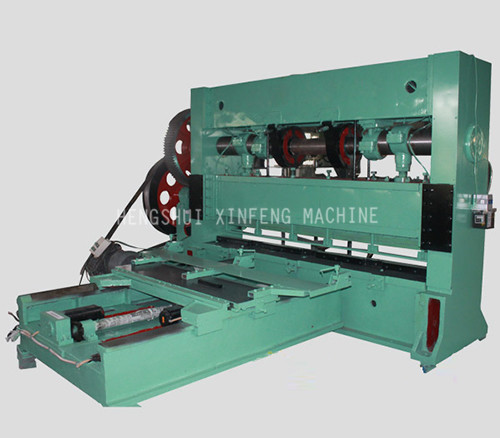

Main technical parameters:
Model: XF-1.5-1250(25T)
Max. Coil width: 1250mm;
Thickness of steel coil: Max. 1.5mm;
Expanding speed: Max. 300 strokes/minute;
Motor power: 7.5KW;
Expanding force: 25T;
Overall size of machine(L*W*H):1290*2096*1850mm
Machine weight: about 3.5 tons
Controlled by PLC+touch screen; Length calculate+automatic cutting

Flattening machine:
Model: XF-YP1300
Roller length: 1300mm
Roller diameter: 400mm
Roller material: alloy steel
Motor power: 5.5kw
Overall size of machine(L*W*H): 2550*740*1370mm
Machine weight: 3.0 Tons

Expanded mesh straightening machine:

Material thickness: 0.5-1.2mm
Max. mesh width: 1300mm
Roller diameter: 55-60mm
Motor power: 3.0kw
Roller quantity: 15 pcs leveling + 2 pcs feeding
Roller material: H13, heat treatment
Speed: 8-12m/min
Overall size of machine(L*W*H): 2150*1345*1580mm
Machine weight: 1.5 Ton
