Z94-C-type new low-noise automatic nail making machine

Z94-C-type new low-noise automatic nail making machine
(nail machine ,nail making machine, china nail making machine)
Performance:Z94 Type C New Generation High Speed Low Noise Automatic Nail Making Machine

Features:This Z94 series, new type C nail-making machines adopt plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nail used for high speed coil nail welder and coil nailers.











Main Specifications:

Technical data

Units

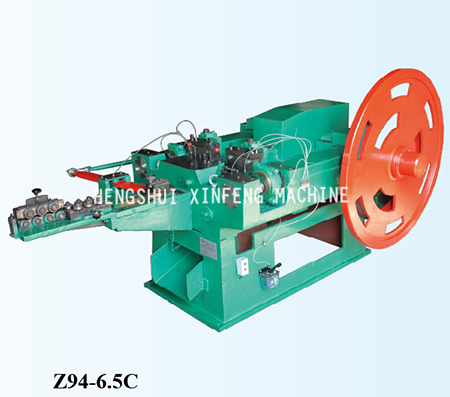

Z94-6.5C

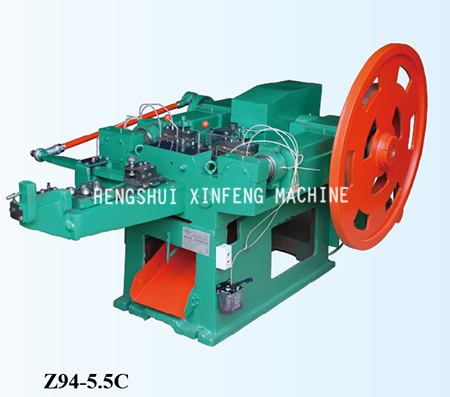

Z94-5.5C

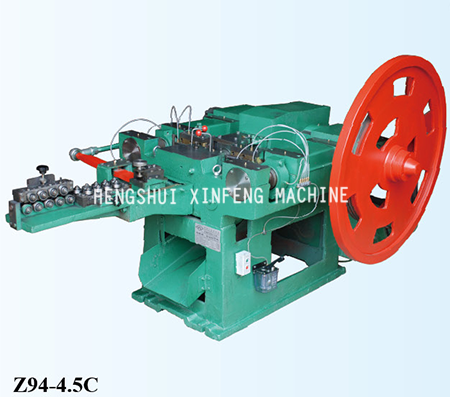

Z94-4.5C

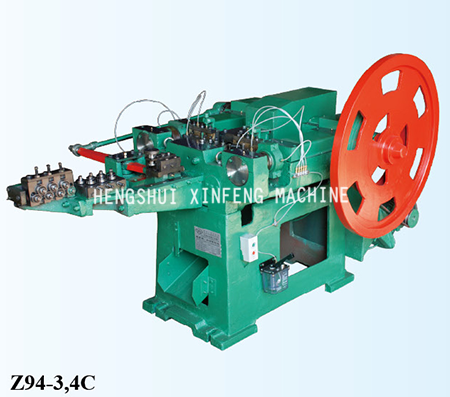

Z94-3.4C

Z94-2.8C

Z94-1.6C

Dia of nail max

mm

6.5

5.5

4.5

3.1

2.8

1.6

Dia of nail min

mm

3.4

3.1

2.8

1.8

1.2

0.9

Length of nail max

mm

203

152

100

75

50

25

Length of nail min

mm

100

70

50

30

16

9

Designed capacity

pcs/min

160-200

180-220

280

300

320

460

Motor power

kw

11

5.5

4

3

2.2

1.5

Weight(approx)

kg

5500

2600

2000

1800

1450

1200

Overall dimensions

mm

3250x1850
x1800

2600x1700
x1700

2200x1600
x1650

2000x1400
x1400

1700x1300
x1400

1500x1300
x1200

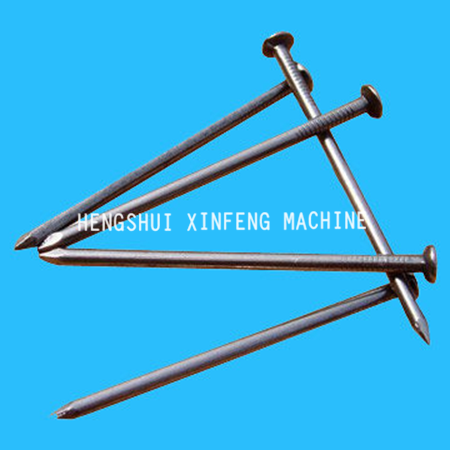

The finished products (nail)
