Double Barbed Wire Machine

Double Barbed Wire Machinebarbed steel wire machine，barbed wire machine，barbed wire making machine,
1 Uses and Characteristics
The machine is mainly suitable for producing all kinds of stocks thorn steel wire, the materials of products should accord with GB/T343-94 standard requirement< the common usage of hot-dipped galvanized low carbon steel wire >. The products are widely used in national defense, railway, highway, agriculture forming etc profession.

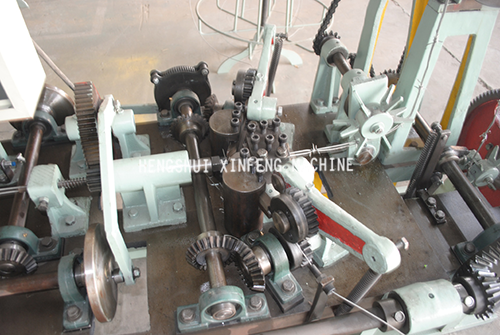

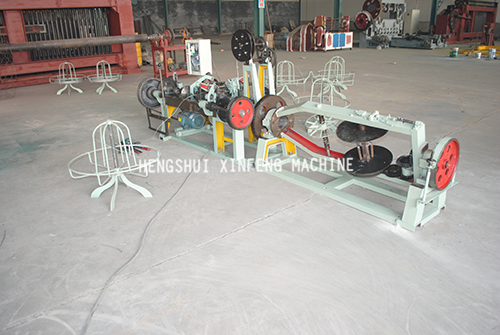

XF-A type barbed steel wire is connected by circle wire and received wire and has four silk plates. All parts work coordinately, move steady, operate rumble and reliable. It is the only equipment of producing barbed steel wire at home at present.

2 the main parameter
The main parameter of XF-A barbed steel wire machine

project	unit	basic parameter
electric motor	type	Y100L2-4
electric motor	KW	3
The circle of main rorating axis	t/min	402
pulling rope speed	t/min	470
the speed of pulling rope	t/min	134
Rotational speed of receiving the rope and disc	t/min	30-255
the part of the main engine	mm	19001300980
the part of receiving rope and twist	mm	1800750750

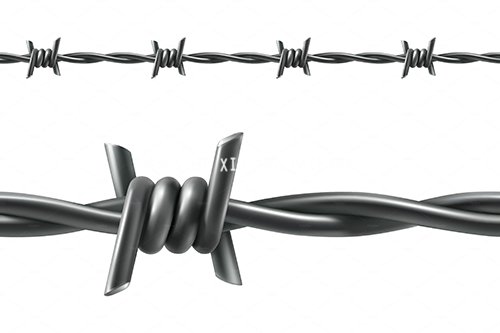

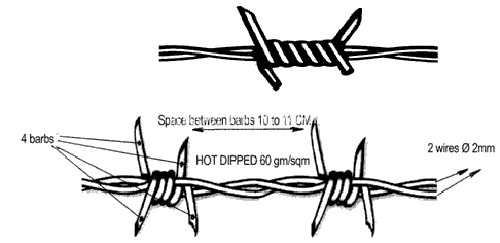

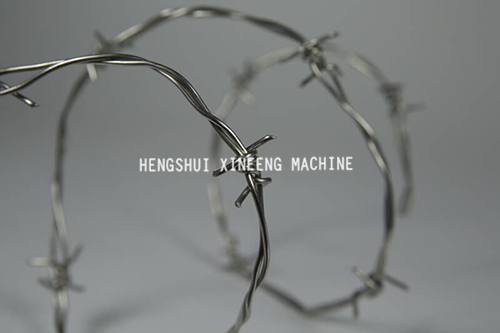

2. the specific of the barbed steel wire
project	unit	basic parameter
the pun cature distance	mm	76(3寸） 102（4寸）
the twist number	a	4
the diameter of sock wire	mm	2.0-2.8
barbed of diameter	mm	1.8-2.2
