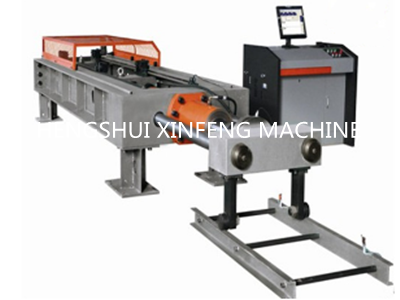

Horizontal universal testing machine

This computer control hydraulic servohorizontal tensile testing machine is professional tensile strength measuringequipment for steel wire rope, besides it is suitable for insulator, electriccable, optical cable, steel strand, slings, lifting belt, hoisting rope, anchorchain etc.

Character

1.Host structure:

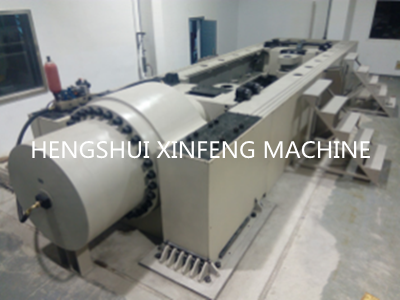

The machine adopts horizontalframe, more stable. The hydraulic oil cylinder is on the fixed beam, there isan optical-electricity encoder on the oil cylinder to test the deformationvalue of the specimen. The piston, loading cell and tensile clamp are connectedtogether. The tensile clamp with mobile wheel can move left and right to adjustthe test space, then it can be fixed on the frame by the pin. The space betweentwo regulation hole can be customized as your requirement.

2.Test system

This horizontal tensile testingmachine adopts computer control electro-hydraulic servo system, closed loopcontrol, hydraulic loading, high accuracy. The test software can display thetest force, peak value, test speed, displacement, deformation and test curve,like time-force, time-displacement, time-deformation, force-displacement,force-deformation curve etc. After finishing the test, you can print the testreport.

3. Safety device

The are removable protectivecover on the frame.

It will automatically stop whenfinish the test.

Oil cylinder limit protection.

Test force overload protection.

Over-current over-voltageprotection.

Main Technical Specifications
