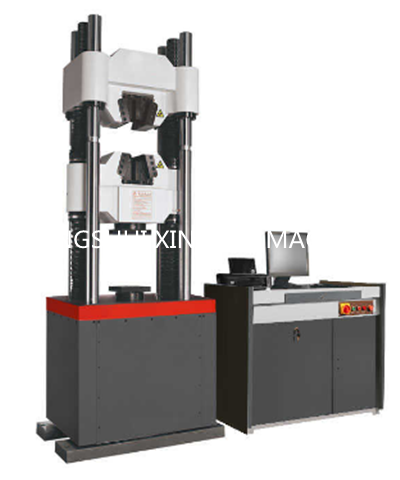

Hydraulic Power Universal Testing Machine

Computerized Electro-hydraulicServo Universal Testing Machine is widely used for tensile and bendingtest for steel rebar, carbon steel bar, deformed steel bar.

It adopts 4 columns with chromeplated and 2 leading screws, high stiffness, more stable.

Press button operated hydraulictensile grips, easy operate.

It's computer controlled servohydraulic type, the piston goes up and high precision load cell directlymeasuring testing force, encoder measuring displacement and electricextensometer measuring specimen's extension. The machine is calibratedaccording to ISO 75001 and ASTM E4.

Application & Features

1) Can do Tension, Compression, Bending, Shear Test
2) Can test materials:  rebar, steel bar, steel plate, carbon fiber steelbar, bolts, nuts, wire ropes
3) Can be customized following any customer's request and test standards.
4) Computer + Software control and display 6 kinds test curves:
force - displacement, force - deformation, stress - displacement, stress -deformation, force - time distortion - time
5) Fully closed loop servo control, adopts servo controller

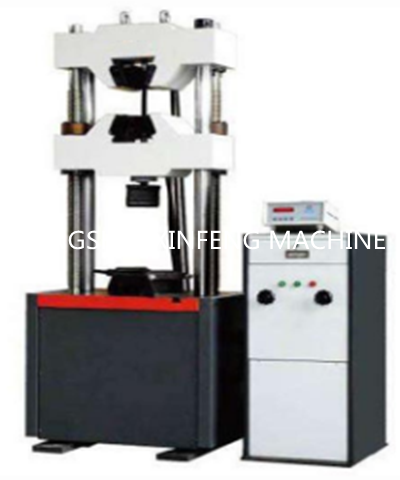

6) Also have UTM-A Computer Display Type,  UTM-S Digital Display Type

Main Technical Specifications
