Accessary equipment for expanded mesh machine

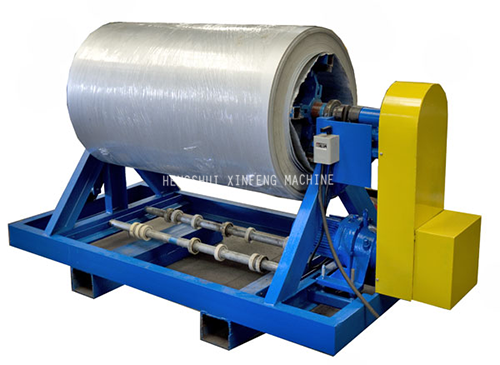

1: (1-5T)DE-COILER-(XF-I)



MODEL

XF-I-600

XF-I -1000

XF-I -1300

XF-I -2000

WIDTH

600mm

1000mm

1300mm

2000mm

LOADING WEIGHT

2T

3.5T

5T

10T

INNER DIAMETER

405mm

508mm

508mm

508mm

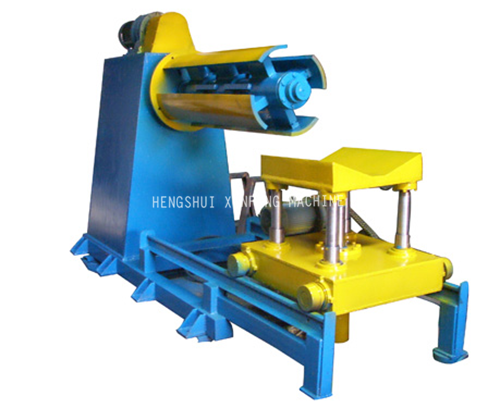

2:(1-5T)DE-COILER-(XF-II)

MODEL

XF-II-600

XF-II -1000

XF-II-1300

XF-II -2000

WIDTH

600mm

1000mm

1300mm

2000mm

LOADING WEIGHT

2T

3.5T

5T

10T

INNER DIAMETER

405mm

508mm

508mm

508mm

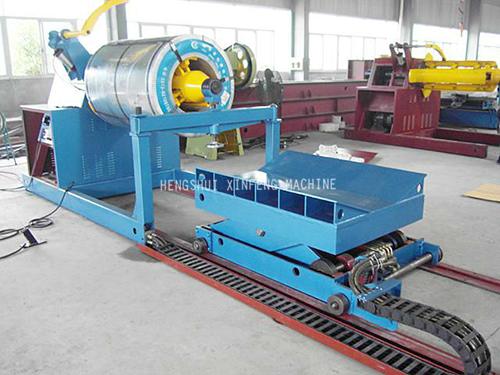

 3:(5-10T)DE-COILER-(XF-III)

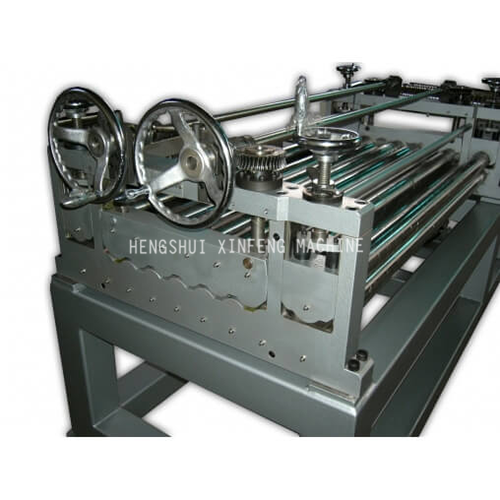

4;expanded metal mesh flating and Straightening Machine



Main Technical Parameters:
Material thickness: 0.5-1.2mm
Max. mesh width: 1300mm
Roller diameter: 55-60mm
Motor power: 3.0kw
Roller quantity: 15 pcs leveling + 2 pcs feeding
Roller material: H13, heat treatment
Speed: 8-12m/min
Overall size of machine(L*W*H): 2150*1345*1580mm
Machine weight: 1.5 Ton
Remarks: expanded mesh straightening/leveling machine can flating and Straightening Machine of the expanded metal mesh.

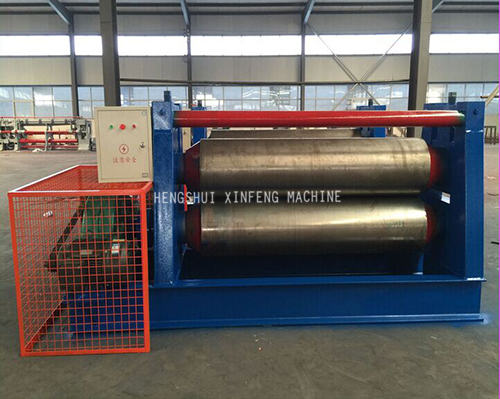

5; expanded metal mesh Flatten machine.



MODEL

XF-YP800

XF-YP1000

XF-YP1300

XF-YP1500

WIDTH

800mm

1000mm

1300mm

1500mm

THICKNESS

Max 1.0mm

0.5-1.5mm

0.5-1.5mm

0.5-2.0mm

ROLLER DIAMETER

250mm

300-400mm

300-400mm

400-500mm

MACHINE WEIGHT

2.6T

2.5T/2.8T

4T

6.5T/5.5T

MOTOR POWER

4KW

4KW

5.5KW

7.5KW

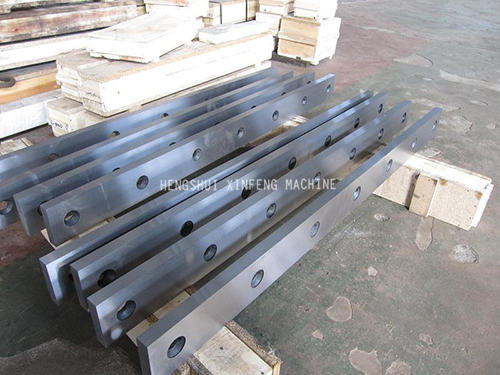

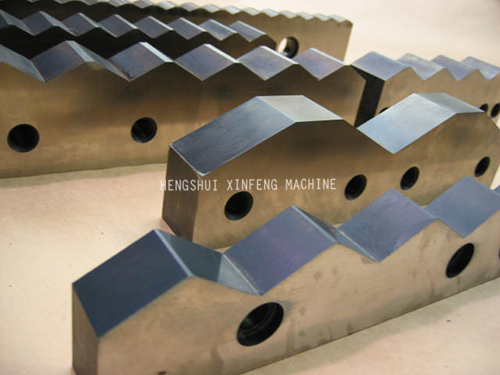

Expanded metal mould
