Metal lath and brickwork mesh machine

Metal lath and Brickwork mesh machine

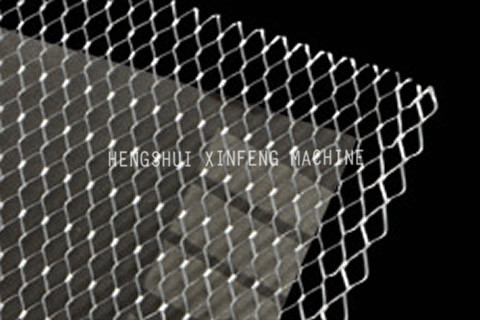

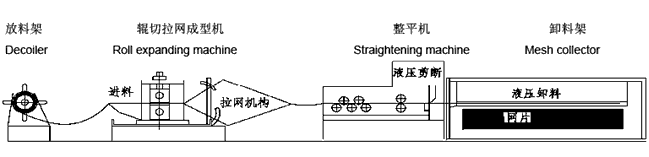

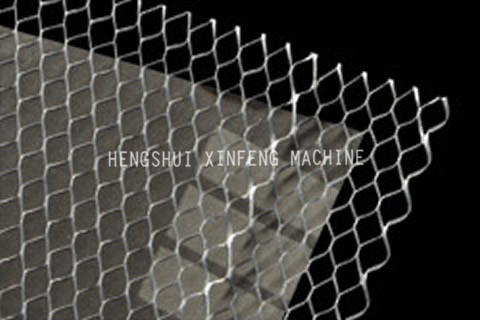

Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table
Technical parameters:

The metal lath and brickwork mesh machine can produce metal lath and brickwork reinforcement mesh on one production line by change molds.






General information:

Machine name/Brief Description

Diamond mesh machine

Rolling Speed

12mpm

NO. of operators

Two

Approx. weight (Total weight)

4 tons

Total power requirement

12kw

Compressed air requirement (cft/min.)

0.5M3

Machine Guard

yes

Machine Mechanism

Rotary

Line direction

Left to right


Decoiler:

Item

Name

Parameter

1

Inner diameter

500mm, adjustable

2

Outer diameter

1000mm

3

Loading weight

Loading weight of each side is 1t

4

Machine size

2650x1970x1620mm

5

Weight

1260Kg

6

Two sides

Each rotation 180°

Roll shearing/expanding:

Item

Name

Parameter

1

Outer diameter of cutter

Φ263mm

2

Blade repaired capacity

3 mm

3

Speed or roll and cutting

12m/min

4

Motor

Power:4kw, Voltage: 380V,
Rotation speed: 1450r/min

5

Machine size

2220x1510x1810mm

6

Weight

2352Kg


Straightening and slitting machine:

Item

Name

Parameter

1

Diameter of roll

63mm

2

Straightening roller QTY

13 straightening rollers

3

Motor

Power:3kW,  Voltage:380V

4

Reduce speed machine

JZQ200—i=20.54

5

Size of machine

1800x1665x1725mm

6

Weight

1554Kg

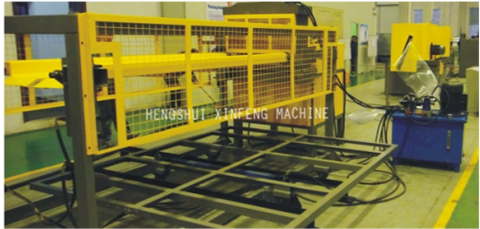

Stacker:

Item

Name

Parameter

1

Product size

700x3000mm

2

Loading weight

1t

3

Loading height

500mm

4

Size of machine

3610*2900*1620

5

Weight

586Kg

 Double head re-winder:

Item

Name

Parameter

1

Inner diameter

120mm

2

Outer diameter

800mm

3

Loading weight

300Kg

4

Motor

Power: 1.5kw, voltage: 380V, 2 sets

5

Machine size

3240x1770x1610mm

6

Weight

1420Kg
