fencing mesh welding machine

fencing mesh welding machine;Automatic wire mesh welding machine;welded wire mesh machine;

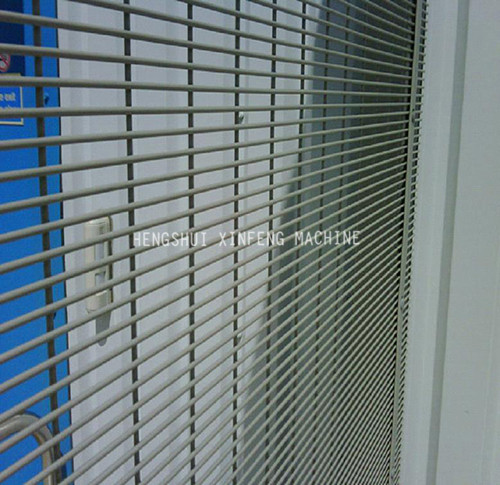

Anti-climbing mesh welding machine can weld the mesh of small mesh opening like 76.2mmx12.7mm which is mainly applied as prison mesh, it is of high speed, easy operation and high quality.


Machine parameter:
. Mesh : 76.2mmx12.7mm.
2. wire diameter: 3-6mm
3. Width range: 2500-3500mm
4. Speed: 65-80 strokes/minute
5. Features:
(1) Line wire off coil, pre-cut cross wires auto feeding with the high production rate.
(2) Quick change-over, easy and quick to re-set different sizes of wire mesh.
6. Applications: anti-climbing fence machine is applied to weld 3510 anti-climbing mesh and 358 anti-climbing fence, compare with normal fence, it saves half cost; compare with the chain link fence, it saves one-third cost.

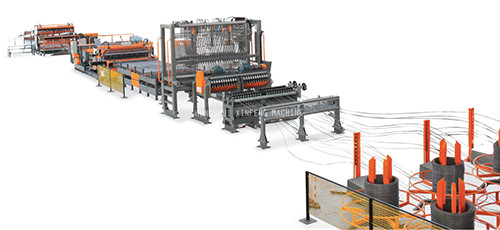

Machine structure:

Line Wire feeding device: two sets of wire feeding device; one is driven by the converter motor for sending the wires to the wire accumulator, another is driven by the servo motor for sending the wires to the welding part. Both of them can help welding pitch precisely.
Mesh welding machine: according to the wire welding pitch, the machine can adjust upper cylinders and electrodes. Adjustable of each welding point and current, which are controlled by thyristor and micro-computer timer for the most proper electrode stroke and perfect use of electrode dies.
Cross wire feeding: automatic cross wire loading carriage with single wire hopper for sorting, positioning and ejecting straightened and cut to length cross wires. Operator sends the pre-cut wires into the carriage by crane.
Controlling system: adopt P.L.C with colored interface windows. All parameters of the system are set on the screen. Fault diagnostic system with picture indication for fast removing of machine’s stops. Linking with P.L.C, the working process and fault messages will be graphical presented.
